ເຄື່ອງເຮັດນ້ ຳ ມັນບັນຈຸ 5 Gallon / 3 Gallon / 20L / 12L / 6L / 4L / 5L

This machine adopts serve weighing type filling system to calculate the filling volume of big barrel products. The machine adopts PLC control, according to the filling bottle, fixed discharge mouth, the rest of the operation can be finished on the touch screen. It's widely used in food, chemical, medical, cosmetic, agrochemical industries, etc. It is suitable for liquid filling, especially for high viscosity materials such as oil, lube oil, Mobil oil, lubricant oil, liquid soap and foam liquid.

ຂໍ້ສະເພາະ

---

ຖັງນໍ້າ ໜັກ 5 ກາລອນ / 3 ກາລອນ / 20L / 12L / 6L / 4L / 5 ລິດ
ເຄື່ອງບັນຈຸຖັງ
ການເພີ່ມຂຶ້ນຂອງການຕື່ມ, capping ຫນ້າທີ່
ເຄື່ອງຈັກຄວາມຈຸ 2000BPH

ລັກສະນະຂອງເຄື່ອງຈັກ

---

1. the rinsing main transmmission is by pneumatic action: the cylinder push the gear, then gear drives rinsing main shaft to rotate, the rinsing position move stablely, and the gear structure can ensure the rinsing rightly to bottle mouth center.
2. When rinsing, filling valve goes into the bottle, the filling time is controlled by magnetic valve to ensure the full filling. The filling time is adjustable to meet full filling requirement
3. When filling action is over, the cylinder push the bottle to capping position, the cap cover the bottle mouth, then cap pressed onto the mouth. After cap pressing action finished, bottles are put out
4. it is easy to sample from sterilizing water tank or make the sterilizing water. The stainless steel filtering net protect the impurity matter from water tank
5. In the rinsing tunnel, there is plastic cutting means enclosure to guard the sterilizing water or alkali water from going outside

ຕົວແບບ	QGF-100	QGF-200	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200
ການຕື່ມ Vavles	1	2	3	4	8	8	8
ຂະ ໜາດ ຂວດ	5gallon	5gallon	5gallon	5gallon	5gallon	5gallon	5gallon
ຂວດສະເພາະ (ມມ)	270 × 490	270 × 490	270 × 490	270 × 490	270 × 490	270 × 490	270 × 490
ຄວາມສາມາດໃນການຜະລິດ (BPH)	100	200	300	450	600	900	1200
ແຫລ່ງຄວາມກົດດັນ (Mpa)	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.6	0.6	0.6
Gas Consumption(m3/min)	0.37	0.37	0.6	0.8	1	1.5	1.8
ພະລັງງານມໍເຕີ (kw)	1.38	1.75	3.8	3.8	7.5	9.75	13.5
ແຮງດັນໄຟຟ້າ (V)	380V / 50HZ	380V / 50HZ	380V / 50HZ	380V / 50HZ	380V / 50HZ	380V / 50HZ	380V / 50HZ
ນໍ້າ ໜັກ (ກິໂລ)	680	800	1500	2100	3000	3500	4500

ລາຍລະອຽດດ່ວນ

---

ປະເພດ: ເຄື່ອງເຕີມ, ພິເສດ
ເງື່ອນໄຂ: ໃໝ່
ຄໍາຮ້ອງສະຫມັກ: ເຄື່ອງດື່ມ
ປະເພດການບັນຈຸ: ຖັງນໍ້າມັນ
ວັດສະດຸຫຸ້ມຫໍ່: ໂລຫະ
ເກຣດອັດຕະໂນມັດ: ອັດຕະໂນມັດ
ປະເພດທີ່ຜັກດັນ: Pneumatic
ພະລັງງານ: 4KW
ສະຖານທີ່ຕົ້ນ ກຳ ເນີດ: ຊຽງໄຮ, ຈີນ (ແຜ່ນດິນໃຫຍ່)
ຊື່ຍີ່ຫໍ້: VKPAK
ວັດສະດຸ: SUS304 ຫຼື SUS316

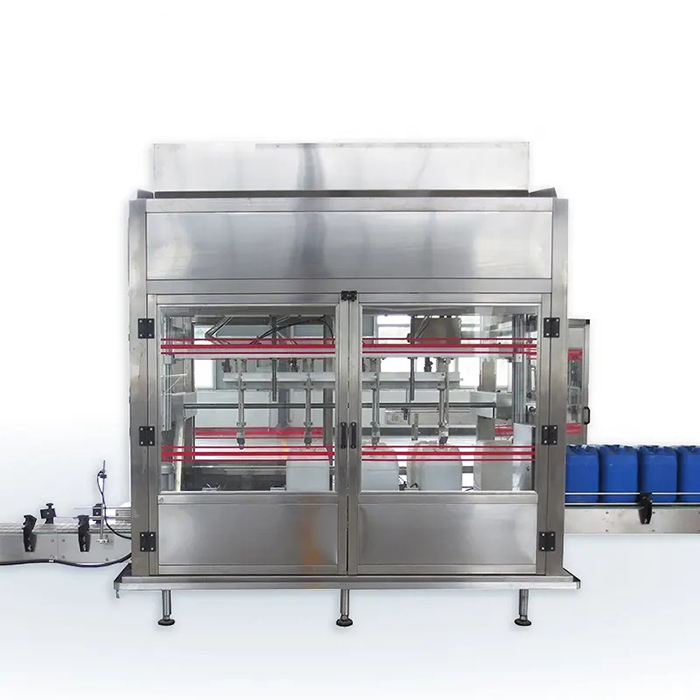

A 5L barrel filling machine is a specialized piece of equipment designed to fill 5-liter barrels or containers with various types of liquid products. This machine is ideal for use in industries such as oil, chemical, and food processing, where accurate and efficient filling of barrels is essential.

The machine consists of several components, including a filling head, a barrel feeding system, a conveyor system, and a control panel. The filling head dispenses the liquid product into the barrel with high accuracy, ensuring that each barrel is filled to the correct level.

The barrel feeding system uses a system of sensors and guides to ensure that the barrels are fed into the filling machine in the correct position and at the correct speed. The conveyor system transports the barrels through the machine, ensuring that they are filled and ejected at the correct time.

The control panel allows operators to adjust the machine's settings and monitor its performance, ensuring that the filling process is running smoothly and efficiently. The machine can be programmed to fill different types of liquid products, making it versatile and adaptable to the needs of different production lines.

The 5L barrel filling machine is designed for high efficiency, with the capacity to fill multiple barrels simultaneously. The machine is also easy to use and maintain, with all components easily accessible for cleaning and maintenance.

The machine can be equipped with additional components such as a capping system or a labeling system, allowing for a fully automated filling, capping, and labeling line.

Overall, the 5L barrel filling machine is an essential piece of equipment for industries that require accurate and efficient filling of liquid products into barrels. It ensures that the products are correctly measured, packaged, and protected, maintaining the quality and integrity of the product.
